Tactical Fuel Bladder and Expeditionary Fuel Storage System
Fuel Forward. Keep the Mission Moving.
Fuel is one of the most critical sustainment constraints in expeditionary operations. When teams move beyond established logistics corridors, fuel becomes both a mobility limiter and a mission-risk driver.
The Hardline FuelVault™ was developed to support mobile, distributed, and austere operations by placing fuel storage and fuel transfer capability directly into the platform. Rather than relying solely on fixed tanks, hard-sided containers, or vulnerable external jerry can configurations, FuelVault provides a compact, inflatable, internally baffled fuel storage system designed for rapid deployment, rapid transfer, and field adaptability.FuelVault is suited for military, special operations, disaster response, expeditionary energy, remote logistics, maritime support, overland mobility, emergency services, humanitarian response, and industrial field operations.
Expeditionary Fuel Capability Without Rigid-Tank Burden

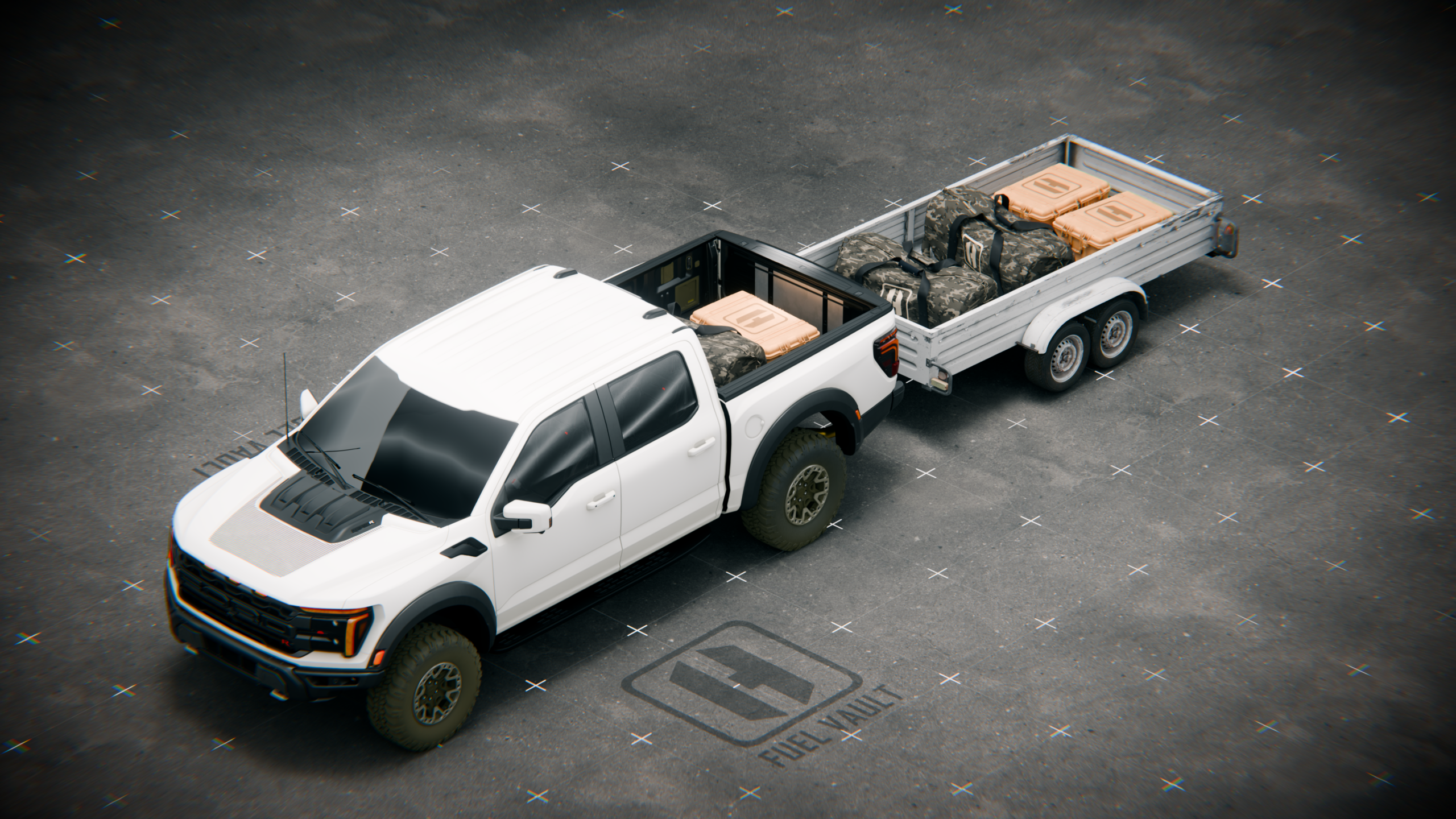

Unlike rigid tanks or bulky fuel containers, FuelVault can be deflated and packed into a single duffle bag, allowing it to move with small teams, logistics detachments, maritime units, emergency response crews, and mobile refuelling packages. The inflation and pumping platform travels in a rugged Pelican case, creating a compact deployment package that can be transported, staged, inflated, filled, dispensed, deflated, and redeployed as mission requirements change.This low-cube, low-weight design makes FuelVault especially suitable for expeditionary operations, special operations mobility support, disaster response, remote construction, maritime support, off-road
External Dimensions
- Length: 198 cm (77.95 in)
- Width: 128.5 cm (50.59 in)
- Height: 100 cm (39.37 in)
Internal Dimensions
- Length: 158.1 cm (62.24 in)
- Width: 88.5 cm (34.84 in)
- Height: 80 cm (31.50 in)
Structural Features
- D-Rings: 26 around FuelVault
Capacity
- Approximate Internal Volume:
- 1,119 litres (296 gallons)
Note: Final usable capacity may vary based on bladder geometry, internal baffling, fittings, ullage, expansion requirements, safety margins, and customer-specific configuration.
Fuel Storage and Transfer
Diesel or Petrol/Gasoline Configurations
FuelVault can be configured for diesel or petrol/gasoline applications, subject to final material specification, fitting selection, fuel compatibility, customer standard operating procedures, and applicable transport, storage, and flammable-liquid regulations.The internal fuel bladder is designed to support extended fuel storage profiles of approximately 12–18 months, subject to fuel type, additive package, temperature exposure, contamination control, water management, sealing, and fuel maintenance procedures.
Internal Baffling for Fuel Stability
FuelVault includes internal baffling within the fuel bladder to help mitigate sloshing during movement. This is especially valuable for vehicle-borne, trailer-mounted, maritime, and off-road operations where dynamic liquid movement can affect handling, stability, and operational safety.
Integrated Inflation and Fuel Transfer Platform
Pelican-Cased M18 Spectre Pump Platform
Each FuelVault can be equipped with Hardline’s proprietary M18 Spectre Pump platform, housed in a rugged Pelican case and engineered for rapid, battery-powered field deployment.
Key Specifications:
- Inflation Performance: < 60 seconds
- Power Platform: Milwaukee M18 12Ah batteries
- Case Configuration: Ruggedized Pelican case
Purpose:
- Rapid inflation and deployment
- Efficient deflation support
- Field-ready sustainment operations
High-Speed Fuel Pump
FuelVault includes a high-performance fuel transfer pump designed for speed, efficiency, and operational reliability when time and exposure are critical.
Key Specifications:
- Flow Rate: Up to 44 GPM (166.5 L/min)
- Duty Profile: 1+ hour runtime on a full charge
Operational Benefits:
- Rapid refueling of:
- Vehicles
- Generators
- Support equipment
- Small craft
- Pumps and mission infrastructure
Performance Insight:
At 44 GPM, the standard FuelVault’s internal volume can be transferred in approximately 6–7 minutes, depending on:
- Usable fuel volume
- Hose length and routing
- Head pressure
- Fittings and pump configuration
- Filtration setup
- Environmental and operational conditions
Platform Integration

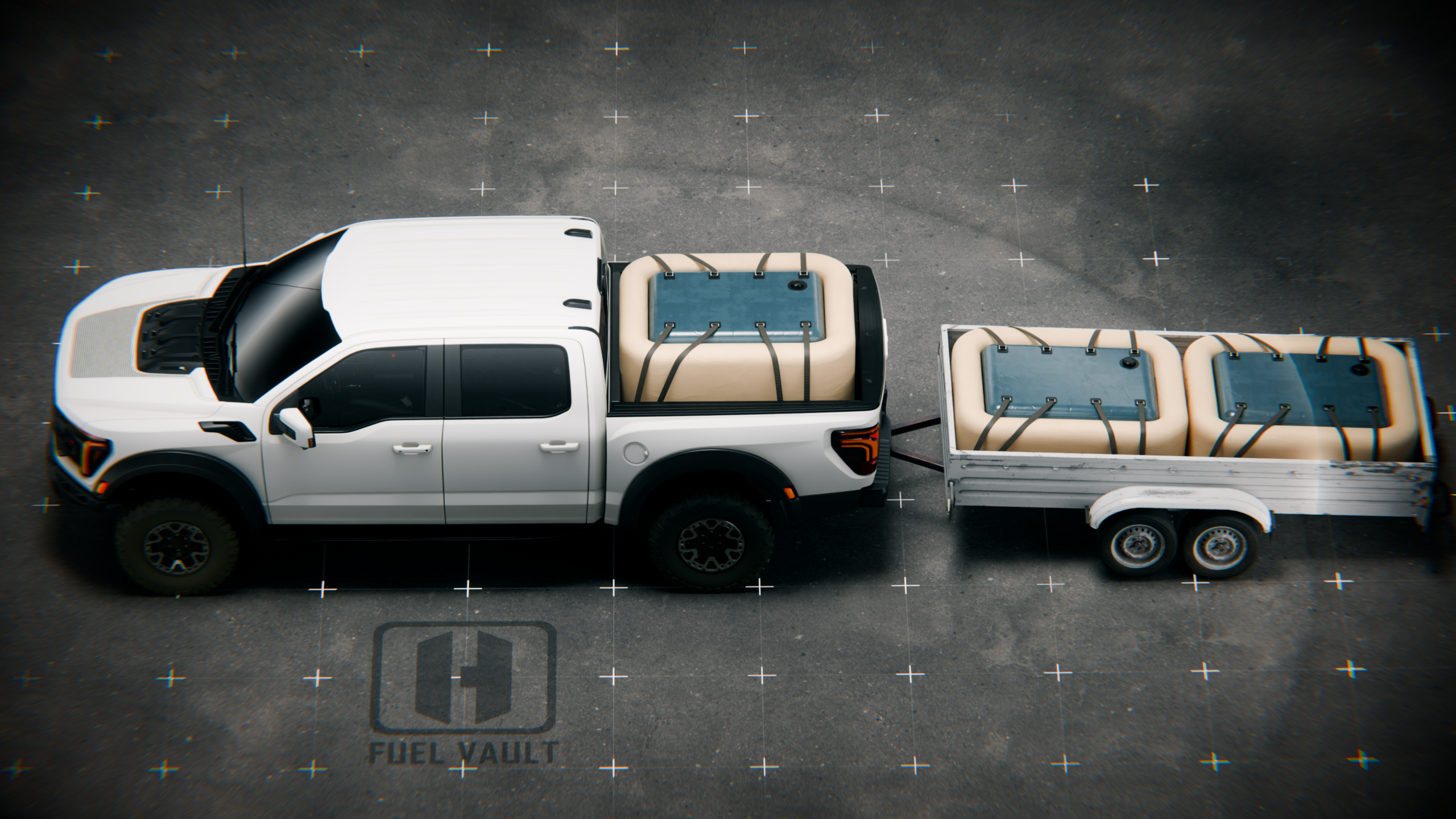

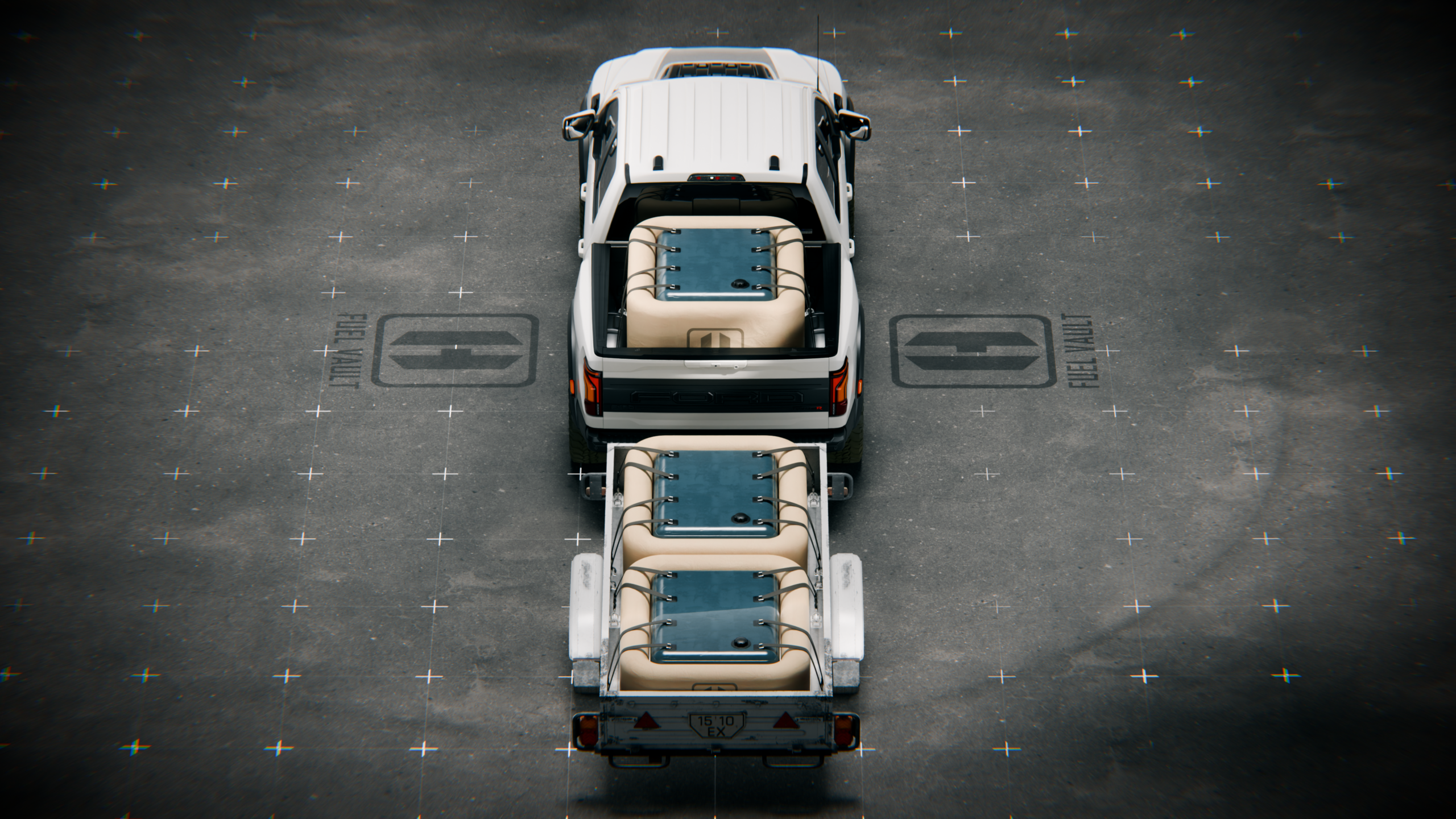

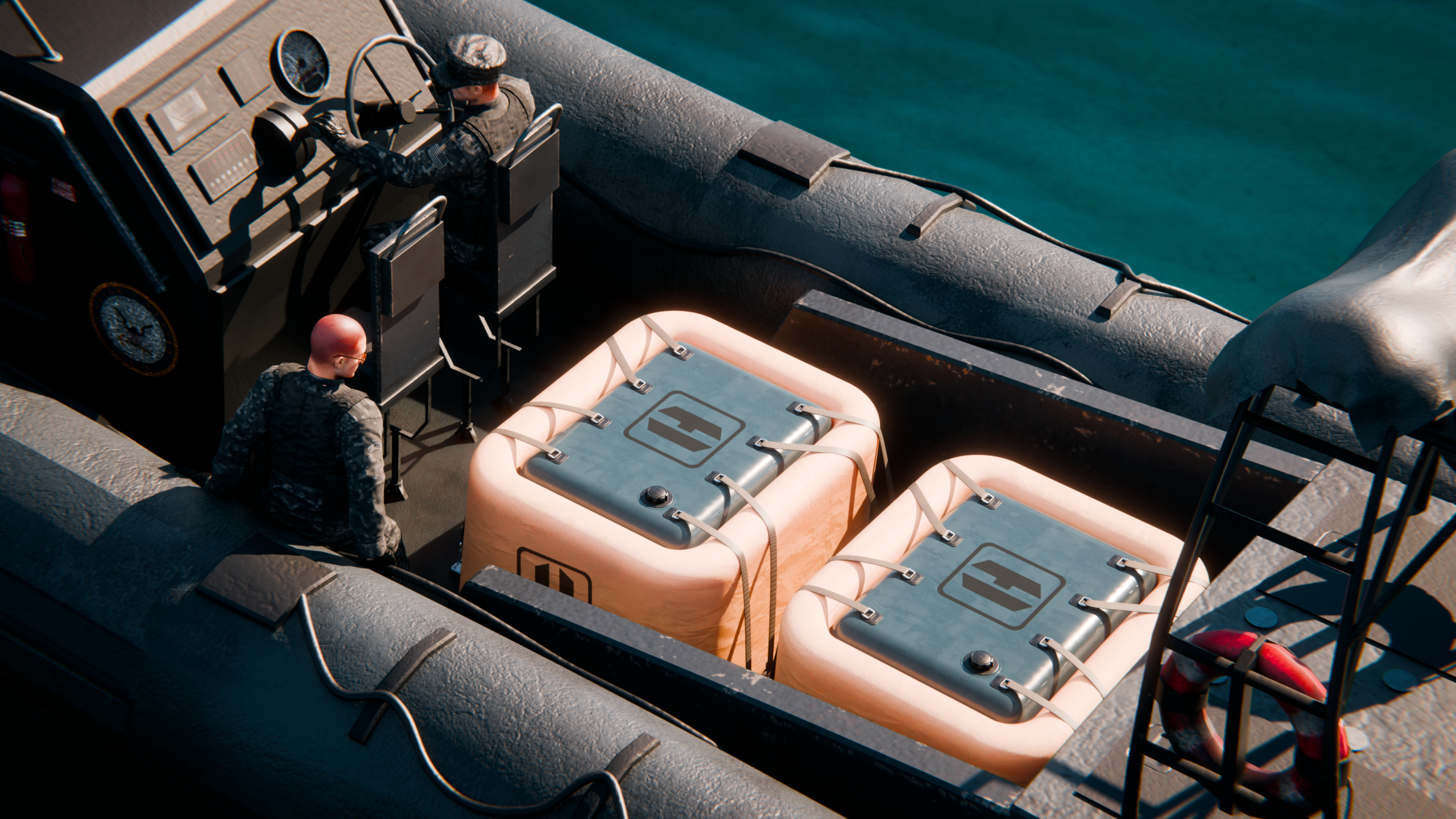

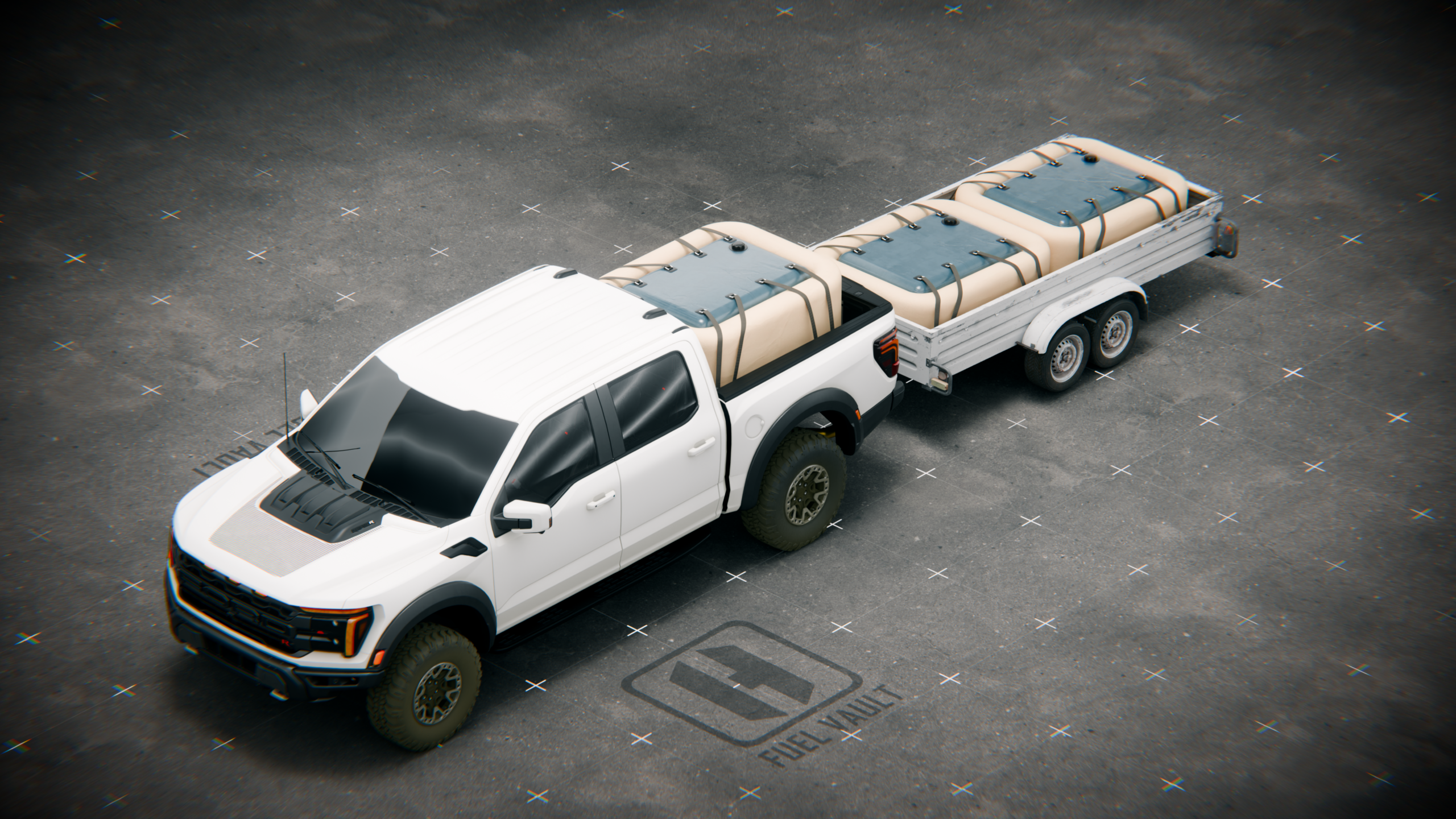

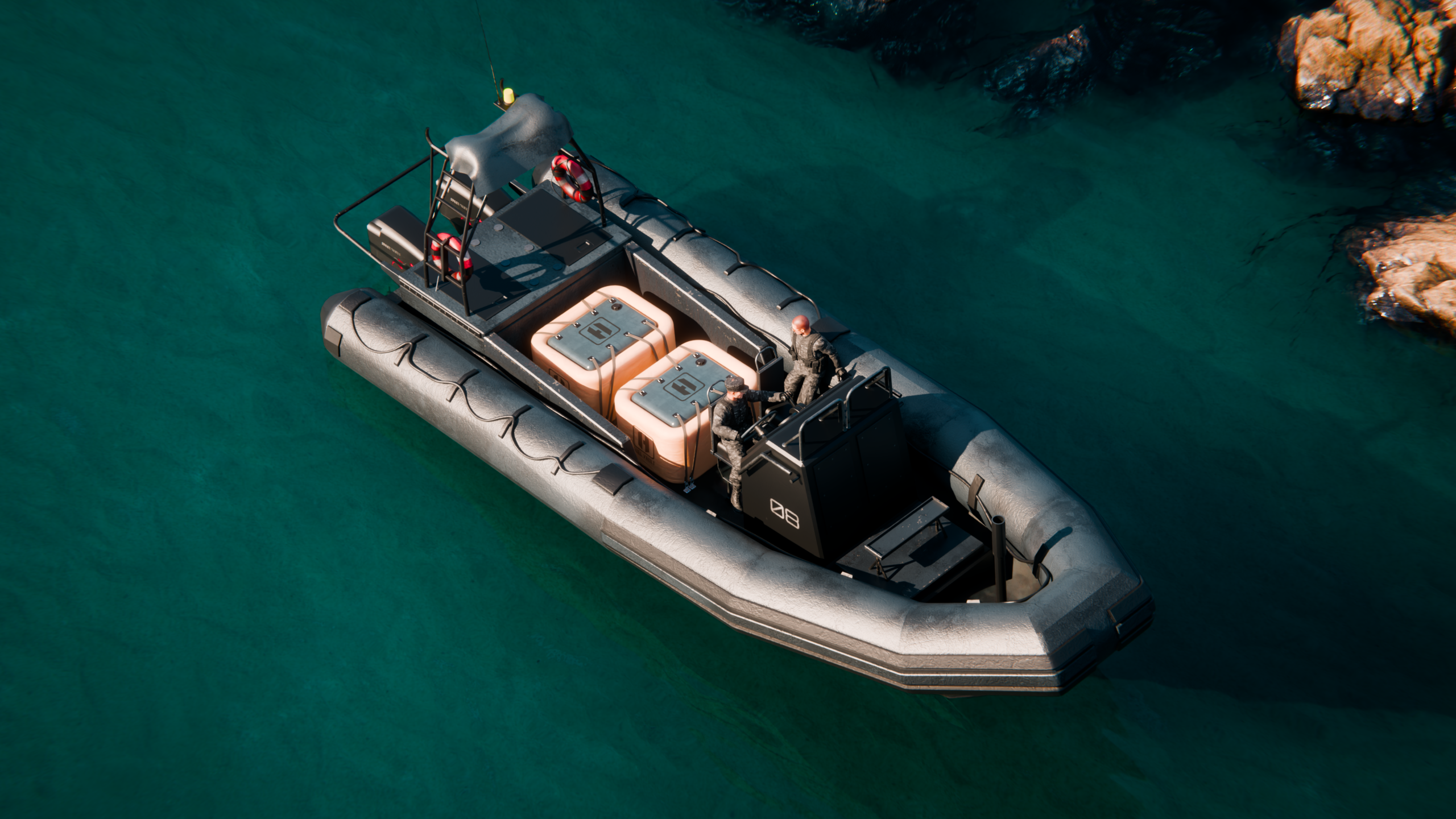

FuelVault integrates across a wide range of platforms, including pickup trucks (F-150), HMMWVs, tactical vehicles, trailers, off-road systems, and maritime craft (RHIBs/RIBs). Its adaptable form factor supports custom payloads, tie-downs, deck layouts, and operator workflows for mission-specific configurations.
Key Applications
- Special Operations: Forward fuel support for distributed and remote teams
- Expeditionary Refuelling: Vehicles, generators, equipment, and small craft
- Vehicle Integration: Trucks, trailers, and tactical platforms

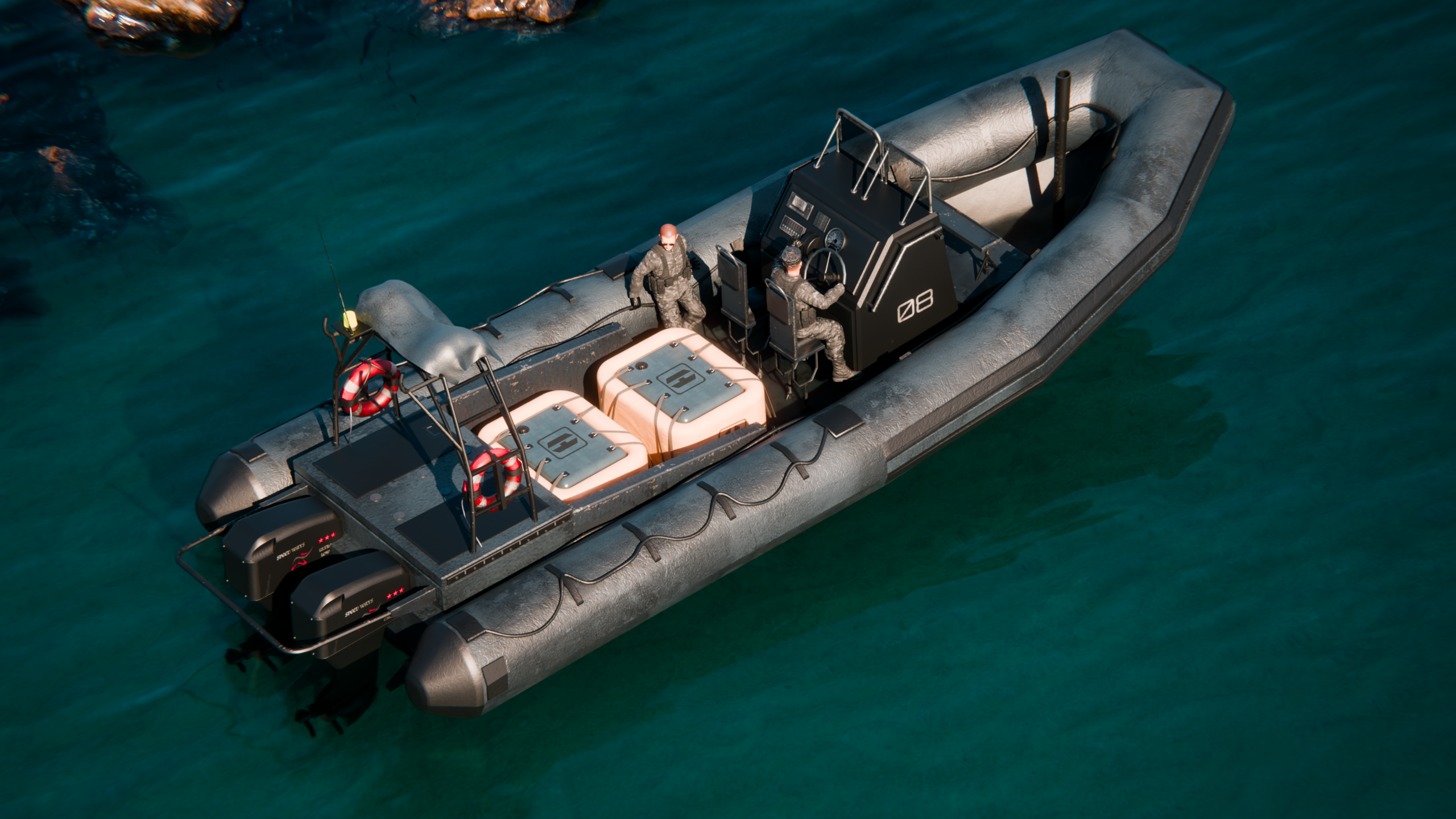

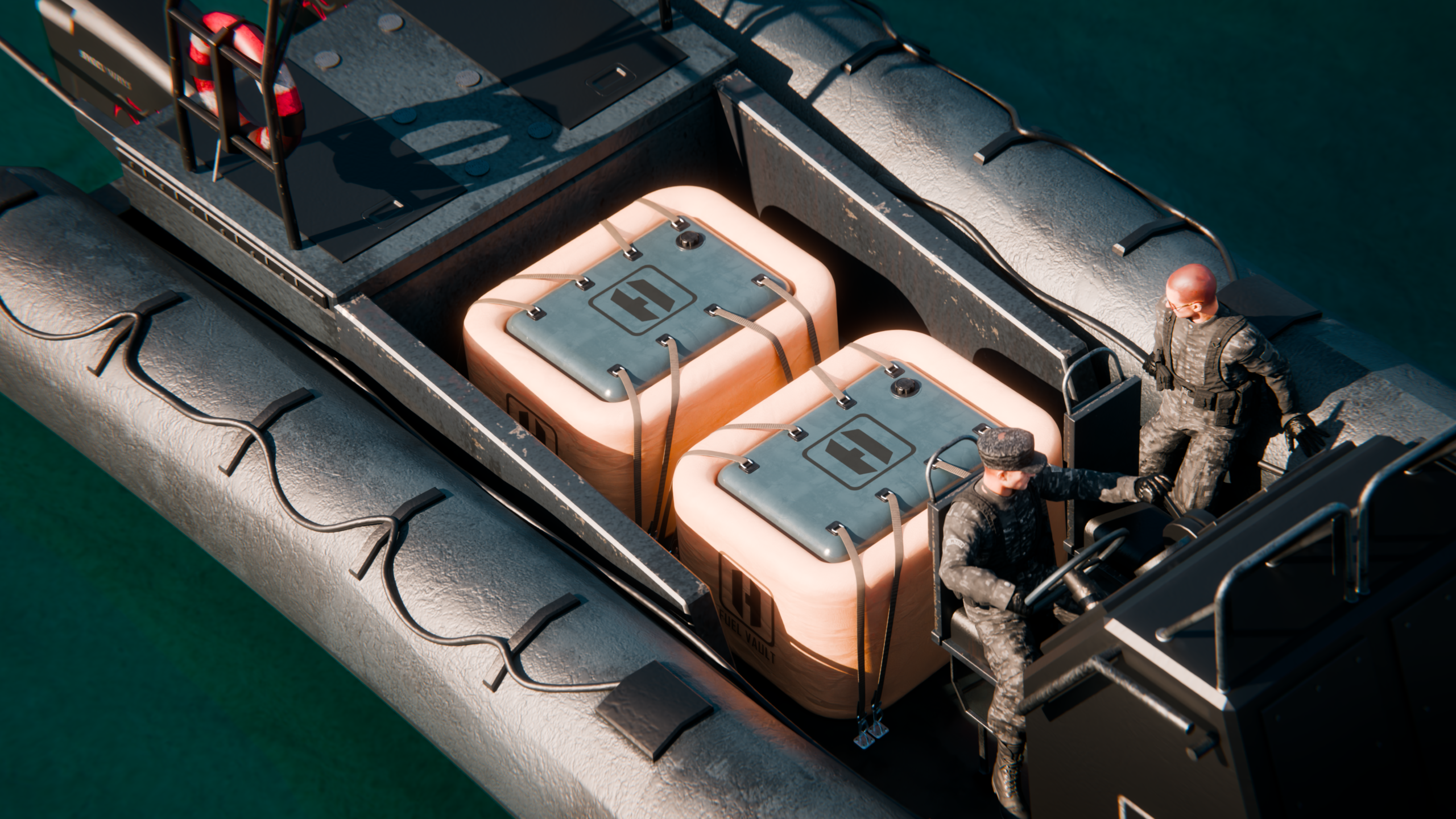

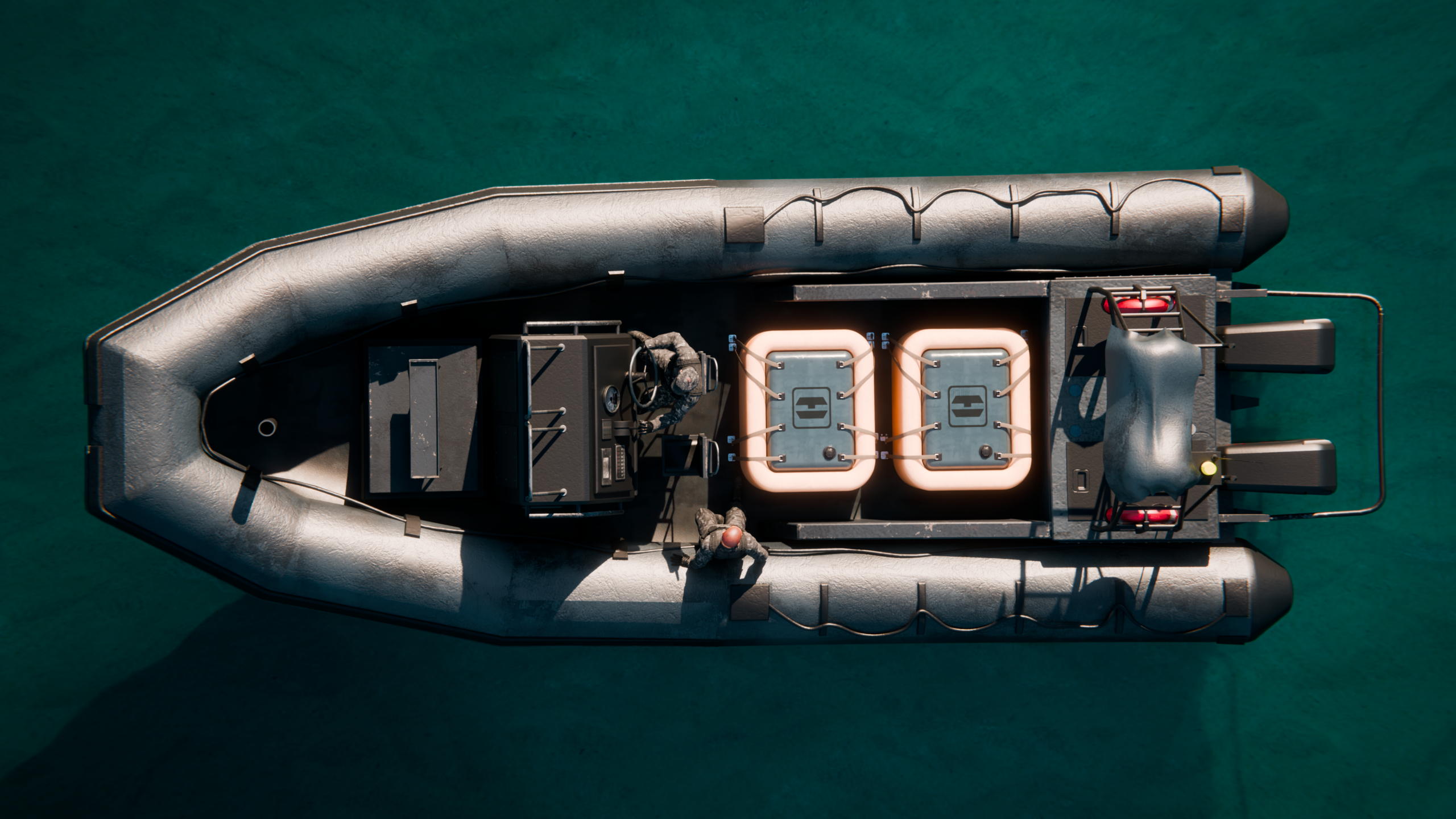

- Maritime Operations: RHIBs, shoreline, and boat-based fuel carriage
- Disaster & Humanitarian: Emergency fuel for response and recovery
- Commercial & Industrial: Mining, construction, utilities, and remote operations
Why FuelVault

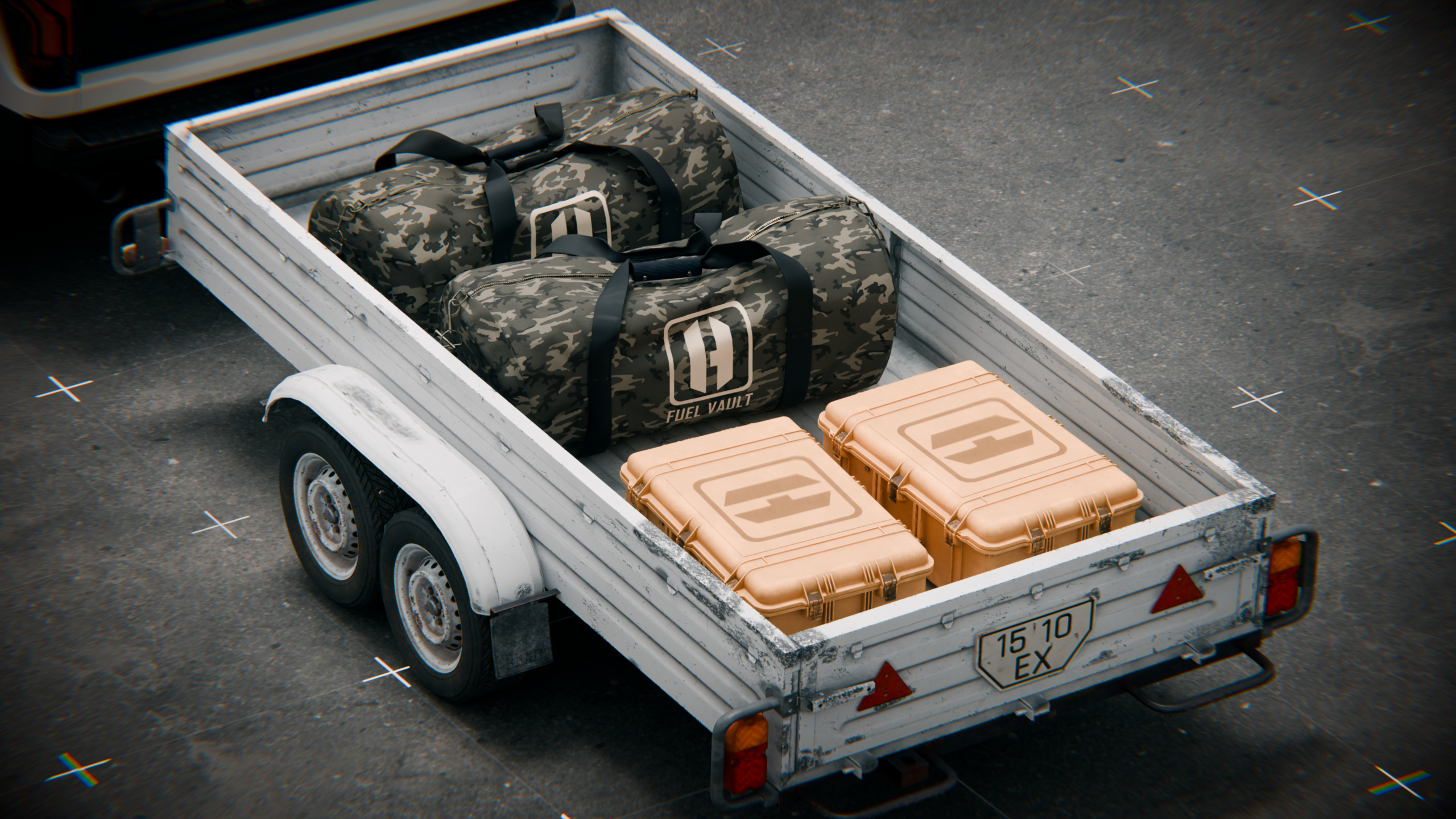

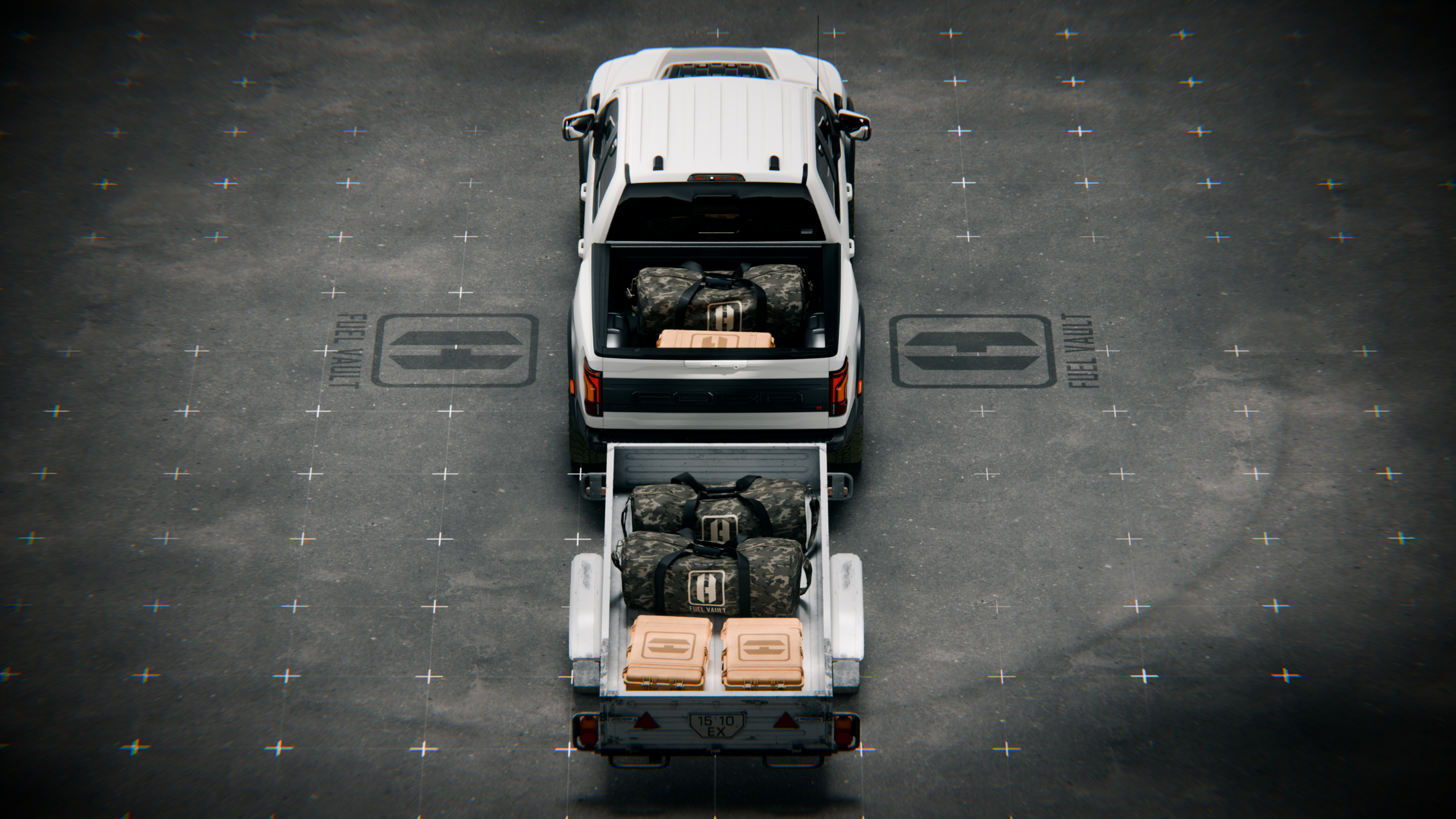

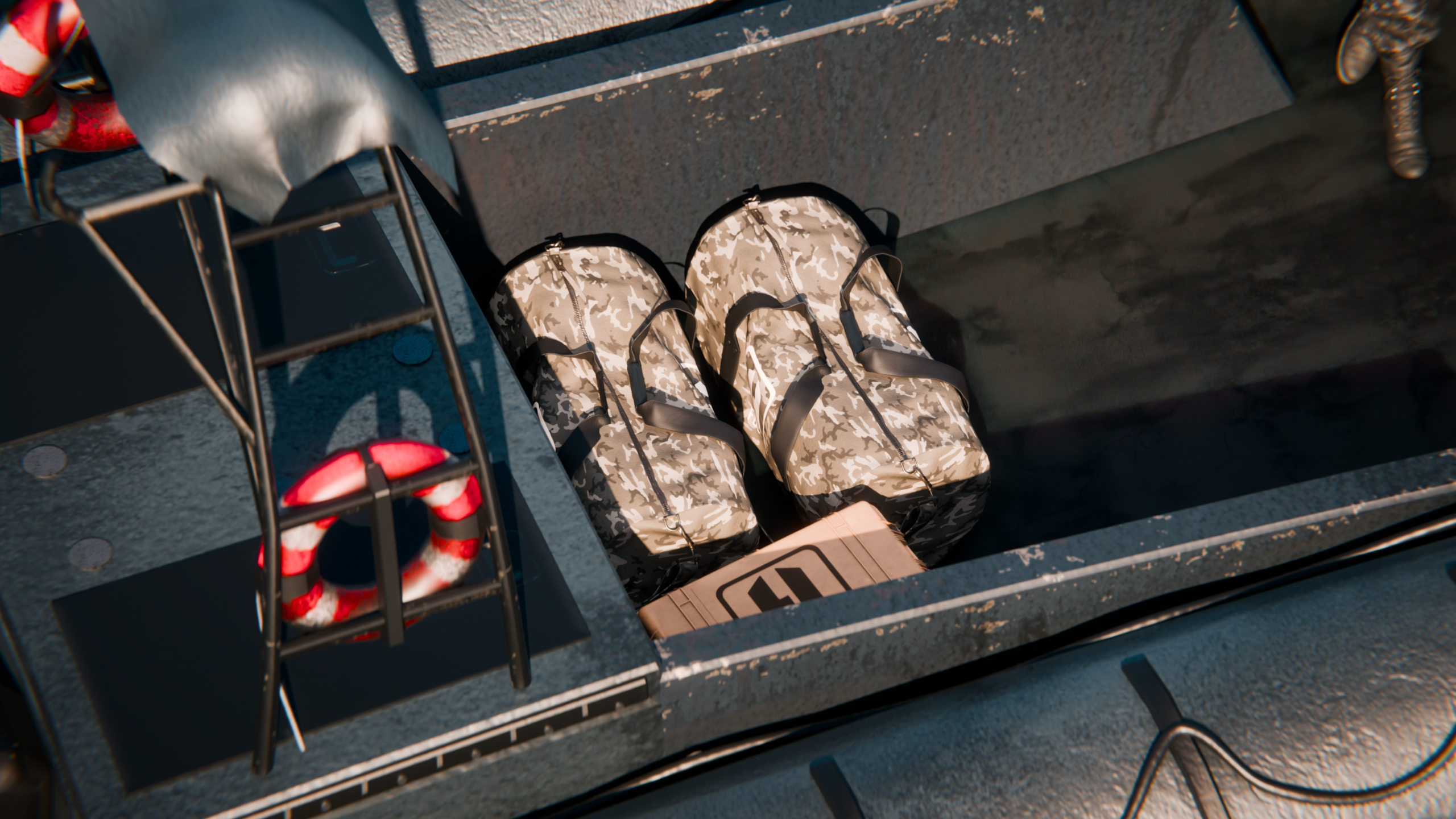

- Low-Cube Design: Packs into a duffle; pump system in Pelican case
- Rapid Deployment: Fast setup for mobile operations
- Mobile Sustainment: Fuel moves with the mission
- Reduced Infrastructure: Eliminates need for rigid tanks and fixed systems
- Anti-Slosh Stability: Internal baffling for transport safety
- High-Speed Transfer: Up to 44 GPM fuel dispensing
- Mission Adaptability: Configurable for any platform or use case
